Bat_AUSTA_LV_16kw_51.2v

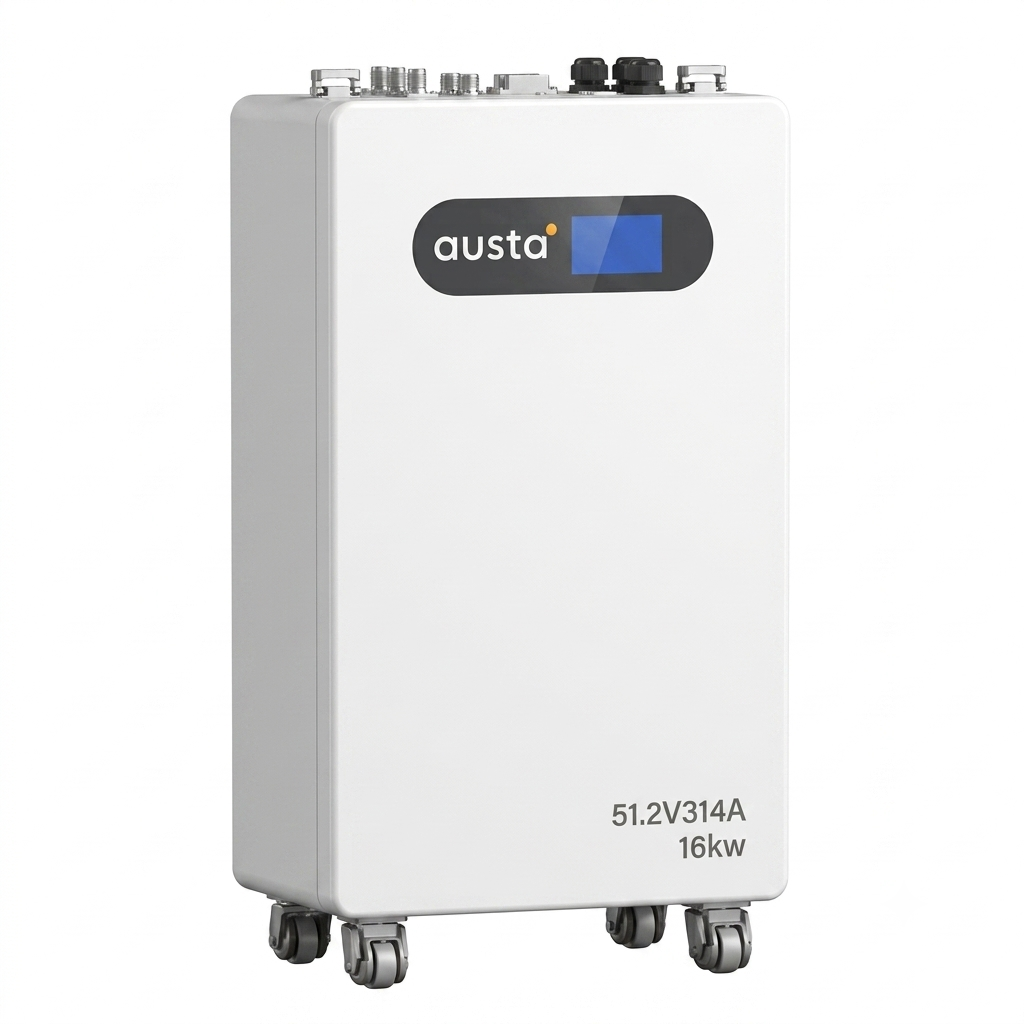

AUSTA Low-Voltage Battery AU Series – 16.07kWh A high-capacity, low-voltage LiFePO4 battery system designed for large residential and light commercial energy storage, combining high density, long cycle life, and smart management.

Features:

• High-Efficiency Energy Storage: Delivers over 99% charge/discharge efficiency with up to 90% Depth of Discharge (DoD) using premium high-density LFP cells.

• Exceptional Longevity: Designed for extended operational life with 10,000+ cycles at 80% DoD.

• Advanced Battery Management: Integrated smart BMS provides complete protection against over-current, over-charge, over-discharge, short circuits, and extreme temperatures.

• Smart Monitoring: Enables real-time system tracking via Bluetooth and Wi-Fi connections.

• Flexible System Expansion: Supports parallel connection of up to 16 units to easily scale overall storage capacity.

• Broad Inverter Compatibility: Seamlessly integrates with mainstream low-voltage hybrid and off-grid inverters.

Technical Specifications (AU51314-S-IS):

• Model: AU51314-S-IS

• Battery Type: LiFePO4 (LFP)

• Nominal Capacity: 314Ah

• Nominal Energy: 16,070Wh (~16.07kWh)

• Usable Energy: 14,470Wh (~14.47kWh)

• Nominal Voltage: 51.2VDC

• Operating Voltage Range: 43.2V – 58.4VDC

• Recommended Charging Current: 100A

• Max Continuous Charge/Discharge Current: 200A / 200A

• Depth of Discharge (DoD): 90%

• Cycle Life: ≥10,000 cycles (@ 25°C, 0.2C, 80% DoD)

• Ingress Protection: IP21

• Communication: RS485 / CAN

• Operating Temp Range (Discharge): -20°C to +60°C

• Operating Temp Range (Charge): 0°C to +55°C

• Net Weight: 125kg

• Dimensions: 917 × 447 × 232 mm

• Applications: Large Residential Solar Systems, Light Commercial Energy Storage, Backup Power, Off-Grid Solar Networks
