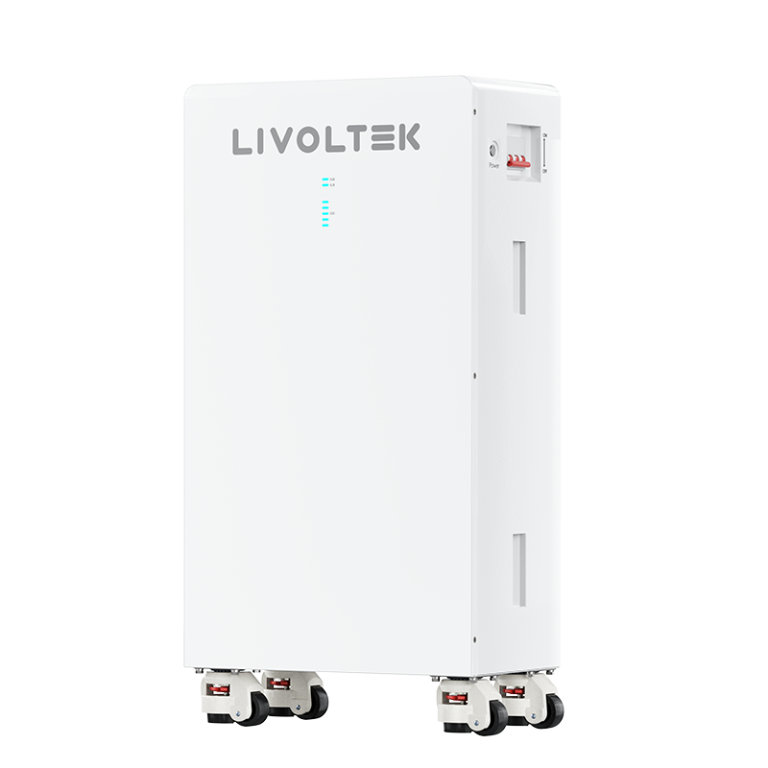

Bat_Li_Livotek_16kw_LV

The Livoltek HomCellar series provides low-voltage battery storage systems tailored for large residential setups. Its massive capacity (16kWh) and compact design optimize energy management, reduce grid reliance, and ensure reliable backup power. Managed by a smart BMS, it delivers efficient and safe performance with a focus on durability.

• Advanced Efficiency & Durability: Uses high-safety Lithium Iron Phosphate (LiFePO4) cells with a cycle life of 6,000+ cycles.

• Smart & Flexible Design: High capacity in a compact design with real-time monitoring via Bluetooth/Wi-Fi and optional wheels for easy relocation.

• Versatile Applications: Ideal for large homes, small C&I setups, or rural independent power systems. Expandable with up to 16 units in parallel.

• Superior Safety: Features high max charge/discharge currents (160A/200A) for fast energy transfer and robust protection. The built-in smart BMS ensures real-time optimization.

• Model Name: HomCellar-16kWh-B2

• Total Capacity: 16 kWh

• Nominal Voltage: 51.2 V

• Voltage Range: 43.2 V – 57.6 V

• Rated Capacity: 314 Ah

• Battery Module: 51.2 V, 314 Ah, 16 kWh

• System Composition: 1P16S

• Depth of Discharge (DOD): 90%

• Operating Temperature Range:

  - Charge: 0°C to +55°C

  - Discharge: -20°C to +55°C

• Max. Charge Current: 160 A

• Max. Discharge Current: 200 A

• Operating Humidity Range: 5%–95% (RH), No Condensation

• Max. Operating Altitude: < 4000 m

• Communication Protocols: CAN & RS-485

• Cycle Life: 6000 Cycles (0.5C Charge/Discharge, @25°C, 90% DOD, 70% EOL)

• Scalability (Parallel): Up to 16 Units

• Ingress Protection: IP20

• Cooling Method: Natural Cooling

• Dimensions (W×H×D): 415 × 883 × 234 mm (includes wheels)

• Net Weight: 110.5 kg
