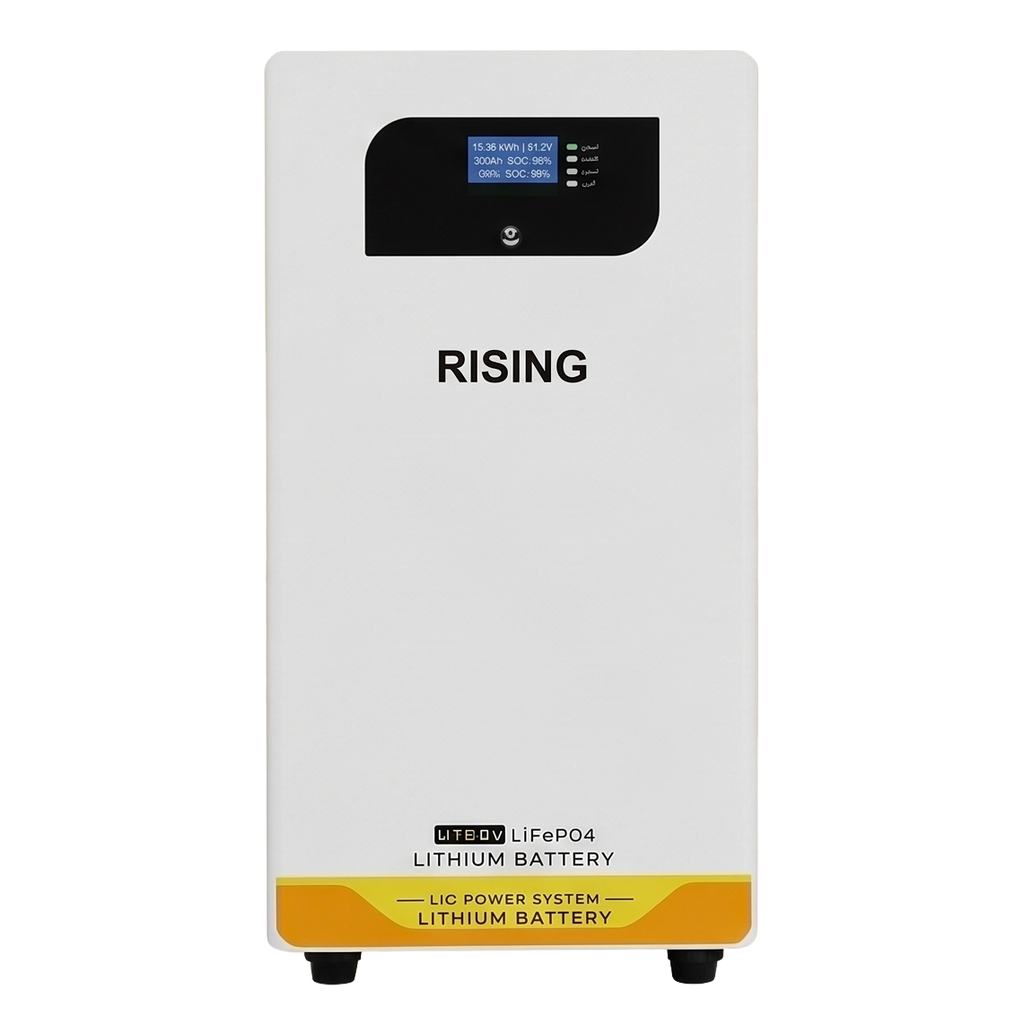

RISING Lithium Battery LC Series - 300A 15kW

A high-performance and durable LiFePO4 battery optimized for residential and commercial solar energy storage, combining large capacity with advanced management.

Features:

• Rugged Construction: High-strength metal shell for durability.

• Cell Optimization: Dynamic charging equalization for cell balance and longevity.

• Intuitive Interface: Real-time monitoring via LED and dynamic LCD displays.

• Energy Efficient: Low power consumption with sleep and wake-up modes.

• Comprehensive Protection: Adjustable protection for over-current, short-circuit, over-charge, over-discharge, and high temperature.

• Advanced Monitoring: High-accuracy voltage/current detection and temperature sensing.

• Smart Communication: Full communication via RS232, RS485, and CAN.

Technical Specifications (LC 300AH 51.2V):

• Model: LC 300AH 51.2V

• Cell: LiFePO4

• Available Capacity: 15,360Wh (~15.36kWh)

• Rated Voltage: 51.2VDC

• Voltage Range: 43.2V - 58.4VDC

• Max Continuous Discharge Current: 200A

• Max Continuous Charge Current: 140A

• Max Output Power: 10,240W (~10.24kW)

• Cycle Life: ≥6000 times

• Depth of Discharge (DoD): ≥95%

• Protection: Integrated against all anomalies.

• Communication: RS232, RS485, CAN

• Operating Temp (Discharge): -10°C to +50°C

• Operating Temp (Charge): 0°C to +40°C

• Net Weight: 117kg

• Dimensions: 820 x 394 x 230 mm

Applications: Residential Solar, Office Solar, Solar Mobility (EV/Boat), Solar Lighting
