⚡ Inv_Austa_IP66_10kw_Hyb (Single-Phase Hybrid Inverter)

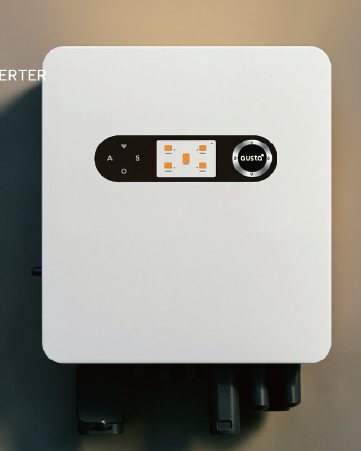

The Austa AU10KESL-G3 Low Voltage Hybrid Inverter is engineered to provide high-capacity solar self-consumption and power backup for large residential or commercial setups. Designed for 48V low-voltage battery systems, it features IP66 protection, dual MPPTs, and ultra-fast backup switching.
🔑 Key Features & Highlights
• High Charge/Discharge Capacity: Supports maximum charge/discharge current of up to 200A.
• High PV Oversizing Capability: Supports up to 150% DC oversizing (up to 15,000W PV Input).
• Rapid EPS Switching Time: Seamless transfer time < 10ms for critical loads.
• Heavy Off-Grid Surge Support: 200% backup overload capacity for 20 seconds.
• High Protection Class: IP66 rated enclosure for full dust and water ingress protection.
• Flexible Expansion: Supports up to 6 units in parallel operation, AC coupling retrofit, and generator integration.
📊 Technical Specifications Summary
• Model Code: AU10KESL-G3 (Inv_Austa_IP66_10kw_Hyb)
• Max. DC Input Power: 15,000 W
• Max. DC Input Voltage: 500 V
• Start-Up Voltage: 125 V
• MPPT Voltage Range: 150 V – 425 V
• Nominal DC Input Voltage: 370 V
• Number of MPPT Trackers / Strings: 2 MPPTs / 2+2 Strings
• Max. PV Input Current: 18A / 18A (Short-circuit current: 34A / 34A)
• Nominal AC Output Power: 10,000 W
• Max. AC Output Apparent Power: 10,000 VA
• Nominal AC Grid Voltage / Frequency: 220 / 230 / 240 V (50/60 Hz)
• Max. AC Output Current: 43.5 A
• Battery Voltage Range: 40 V – 60 V (Lead-acid or Lithium-ion)
• Max. Battery Charge / Discharge Current: 200 A
• Max. Efficiency: 97.6% (MPPT Efficiency: 99.9%)
• Transfer Time (EPS): < 10 ms
• Ingress Protection: IP66
• Dimensions (W×H×D): 420 × 505 × 224 mm
• Net Weight: ~29 kg
• Communication Interfaces: RS485, CAN, WiFi, LAN, 4G (Optional)
